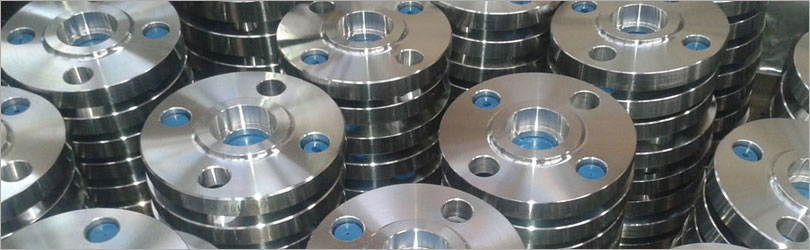

Flanges
 |
Our range of industrial flanges are ideal for application in diverse industry for high pressure and temperature applications. These flanges are designed with precision for easy installation. Apart from standard flanges, we also offer custom designed flanges to meet the specific application requirements of the customers. |
|
Duplex Steel Flanges
SPECIFICATIONS :
Grade : S31803, S32205, 1.4462, F51 ; Duplex 2205, Duplex 2507
Standard : ASTM / ASME A/SA 182
Types:
- Duplex Steel Blind Flanges
- Duplex Steel Weld Neck Flanges
- Duplex Steel Reducing Flanges
- Duplex Steel Screwed Flanges
- Duplex Steel Socket Weld Flanges
- Duplex Steel Slip On Flanges
- Duplex Steel Long Weld Neck Flanges
- Duplex Steel Lapped Joint Flanges
|
 |
Stainless Steel Flanges
RANGE : 15 NB UP TO 600 NB IN 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS , 1500 LBS , 2500 LBS / TABLE 2.5 , TABLE 6 , TABLE 10, TABLE 16,TABLE 25 , TABLE 40, TABLE 64, TABLE 160, TABLE 320, TABLE 400
FORM : SLIP ON , SOCKET WELD , BLIND , LAPPED , SCREWED , WELD NECK , REDUCING , SPECTACLE ,SLIP ON BOSS , PLATE , PLATE BLANK , SCREWED BOSS.
Grade : ASTM / ASME SA 182 F 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347H . |
| |
|
 |
Carbon Steel Flanges
SPECIFICATIONS :
CHARACTERISTICS :
Accurate dimensionsExcellent resistance against corrosionAbility to withstand extreme temperature & shocks
SIZE AVAILABLE :
½” NB to 24 “NB in Weld neck, slip on , Socket Weld, Blind, lap joint, raised face , Flat face, threaded flanges, orifice flanges in class of 150, 300, 600, 900, 1500, 2500 |
| |
|
 |
Alloy Steel Flanges
SPECIFICATIONS : Grade : F 5, F 9, F 11, F 12, F 22, F 91.
Range : ½” NB to 60” NB
Standard : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150#, ASA 300# DIN ND 6,10,16,25,40 Etc.
Features: Dimensional accuracy. High strength Durability Corrosion resistance Excellent finish
Types: Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint |
| |
|
 |
Copper Alloy Flanges
Specifications:
Standard: ASTM / ASME SB 61 / 62 / 151 / 152
Grade: UNS NO. C 92200, UNS NO. C 83600, UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200
Standard: ASTM / ASME A/SA 182 |
| |
|
 |
Nickel Alloy Flanges
SPECIFICATIONS :
GRADES :
Nickel 200 (UNS No.2200), Nickel 201 (UNS No.2201), Nickel 205 (UNS N0.2205).
Range : ½” (15 NB) to 48 “ (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, ASA 150, ASA 300
Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
|
| |
|
 |
Hastelloy Flange
Size : 1/2"NB to 12"NB
Type : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
Grade : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000 |
| |
|
 |
Inconel Flanges
Size : 1/2 inch - 48 inch (15mm - 1200mm)
Type : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Standard: ANSI/ASME B16.5, ANSI B16.47 API, DIN, JIS, BS
Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
|
| |
|
 |
Monel Flanges
Grades :Monel 400, Monel k500
Range : 1/2” NB to 60” NB
Types: Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint
Features :
- Durability
- Corrosion resistance
- Dimensional accuracy
- High strength
- Chemical resistance
- Excellent finish
|
|
